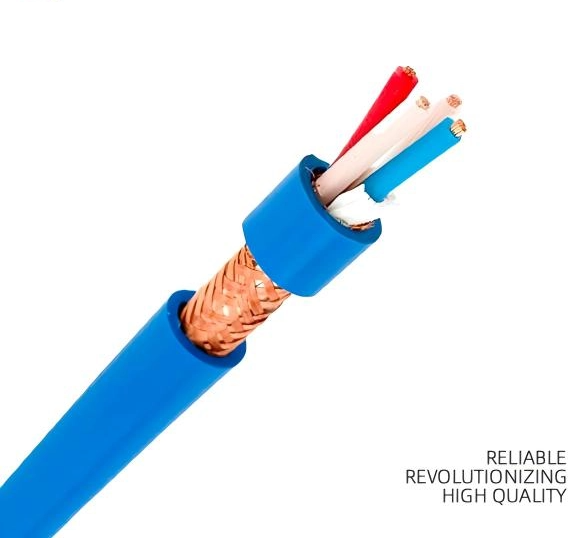

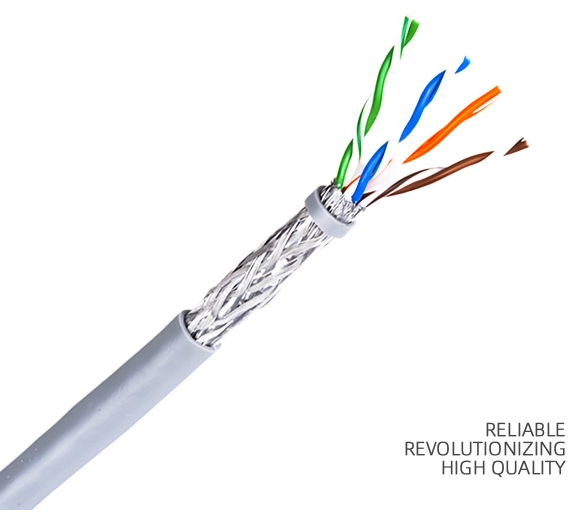

Communication Cable Network Cables from RRH are the backbone of modern data systems, designed to transmit high-speed digital signals across networks with minimal loss. These cables, including Cat5e, Cat6, and fiber-optic variants, support fast Ethernet, broadband, and internet connectivity, making them essential for offices, data centers, and residential high-speed internet setups. Twisted-pair designs reduce electromagnetic interference, ensuring stable data flow, while fiber-optic options offer ultra-high bandwidth for long-distance transmission (up to kilometers). RRH’s network cables feature durable jackets (PVC or LSZH) for protection against bending and abrasion, extending their lifespan in busy environments. Available in various lengths and colors for easy network organization, they ensure seamless connectivity for video conferencing, cloud computing, and large data transfers—keeping businesses and homes connected at top speeds.

Product Advantage

Improved Durability with top quality manufactured insulation ensuring full compliance with industry standards, designed to withstand extreme temperatures, moisture and physical harms

RRH Cable we have the capability to manufacture grade A 99.9% pure copper precisely stranded in the insulators for the best conductivity and efficiency

Thanks to our expert craftsmanship, we provide high-quality cables that minimize the need for frequent maintenance or replacements, significantly reducing long-term operational costs.

Technical Parameters

Cable Type       AWG Size    Cross-Section (mm²)   No. of Conductors   Voltage (V)   Ampacity (A)   Insulation Conductor Material      Core Type                   Shielding
CAN Bus                20 AWG                  0.52 mm²                      2                           12 – 24             5               XLPE / FEP      Tinned Copper             Stranded              Twisted Pair + Foil
Ethernet Cat5e   24 AWG                  0.205 mm²             8 (4 pairs)          48 (PoE)       ~0.5           PE / PVC / LSZH     Bare/Tinned Copper   Solid / Stranded    UTP / FTP / STP
Ethernet Cat6     23 AWG                  0.258 mm²             8 (4 pairs)           48 (PoE+)    ~0.577       HDPE / LSZH             Bare  Copper     Solid / Stranded                     UTP / STP
USB 2.0                 28 AWG (Data)    0.081 mm² (Data)          4                         5                0.5 – 2.5     PVC / TPE                 Tinned Copper            Stranded                      Foil + Braid
24 AWG (Power)   0.205 mm² (Power)
USB 3.0                28 AWG (Data)     0.081 mm² (Data)           9                          5               Up to 3         XLPE / PVC               Tinned Copper        Stranded           Multiple Foils + Braid
20 AWG (Power)   0.52 mm² (Power)
HDMI                   30 – 28 AWG          0.05 – 0.081 mm²         19                          5                 <1                PE / LSZH                   Tinned Copper         Stranded                     Multiple Foils
Coaxial (RG58)  20 AWG                     0.52 mm² (core)           1                Up to 500          ~ 2               PE / PVC            Solid / Stranded Copper   Solid / Stranded      Braided Shield

Product Uses
Automotive, local interconnect network, ethernet cable, driver assistance system, etc

Industrial Automation, modbus, devicenet, data terminal equipments, etc

Networking, fiber optic cable, etc

Medical Equipment, data cables for imaging, sensors, diagnostics, etc

Product Operate Guide
Apply cable base on its insulation property

Always de-energize the system before working on cables

Proper PPE duing operation

Consideration

Feature                                                                                                                            Importance
Shielding (Foil/Braid)                                                Prevents electromagnetic interference (EMI) and signal crosstalk
Twisted Pair Design                                                    Minimizes noise and supports high-speed differential signaling
Impedance Control                                                     Maintains signal integrity in high-frequency or long-distance applications
Flexibility                                                                      Allows routing in tight spaces or moving assemblies
Low Capacitance                                                         Essential for high-speed data transmission
Durability                                                                     Must resist vibration, bending, heat, and chemicals (especially in vehicles)
LSZH Insulation                                                         Low-smoke, zero halogen; used in confined areas like trains, ships, or server rooms
