描述

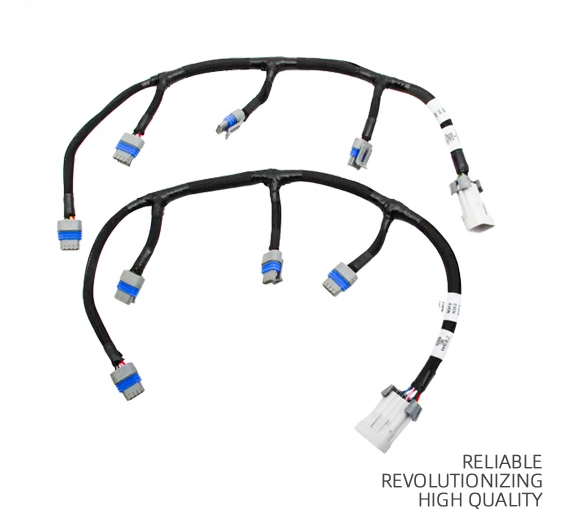

Signal Transmission wiring Harnesses from RRH are engineered to maintain signal integrity in complex communication and control systems, where even minor loss or interference can disrupt operations. These harnesses bundle multiple signal cables (coaxial, twisted-pair, or fiber-optic) into a compact, protected unit, with shielding to reduce EMI and RFI. Designed for applications like automotive electronics, industrial automation, and aerospace systems, they transmit analog and digital signals (e.g., from sensors to controllers, or between communication devices) with minimal distortion. RRH customizes harnesses with varying conductor sizes and insulation materials (PTFE for high heat, PVC for flexibility) to match signal type and environment. The organized layout simplifies installation, while durable sleeves protect wires from abrasion and vibration. Whether used in a car’s infotainment system, a factory’s sensor network, or a satellite’s communication setup, these harnesses ensure reliable, low-loss signal transmission, keeping systems responsive and accurate.

Product Advantage

Improved Durability with top quality manufactured insulation ensuring full compliance with industry standards, designed to withstand extreme temperatures, moisture and physical harms

RRH Cable we have the capability to manufacture grade A 99.9% pure copper precisely stranded in the insulators for the best conductivity and efficiency

Thanks to our expert craftsmanship, we provide high-quality cables that minimize the need for frequent maintenance or replacements, significantly reducing long-term operational costs.

Technical Parameters

AWG     Conductor Area  Voltage Rating Current Rating (A)   Insulation Type    Conductor Material    Core Type          No. of Conductors   Notes / Use Case
30 AWG    0.05 mm²      30 – 60V                 0.5 – 1.0 A         PVC / FEP / TPE            Tinned Copper            Stranded (7x finer) 2 – 50      Short-range data, very compact circuits
28 AWG    0.08 mm²      30 – 100V              0.8 – 1.4 A          PVC / TPE / XLPE        Tinned Copper            Stranded                    2 – 40        USB, SPI, UART, signal wires in PCBs
26 AWG    0.13 mm²      100 – 300V             1.0 – 2.2 A          PVC / TPE / FEP           Tinned Copper            Stranded                     2 – 50+    Data harness, CAN/LIN bus, CAT5
24 AWG    0.20 mm²     100 – 300V              2.0 – 3.5 A        PVC / PE / XLPE         Bare/Tinned Copper    Stranded                    2 – 60+     RS-232, RS-485, Ethernet (CAT5e)
22 AWG    0.34 mm²      300V                         3.5 – 5.5 A        PVC / PE / FEP             Bare/Tinned Copper     Stranded / Solid      2 – 60+   Encoder/sensor cables, control lines
20 AWG    0.52 mm²      300V                         5 – 8 A               PVC / XLPE / FEP        Bare/Tinned Copper      Stranded                   2 – 50+    Servo feedback, signal + power combo
18 AWG    0.82 mm²     300V – 600V          7 – 12 A              PVC / TPE / FEP           Bare/Tinned Copper     Stranded                     2 – 40      Industrial I/O, camera cables, RS-422
16 AWG     1.3 mm²        300V – 600V         10 – 15 A            PVC / FEP / Silicone   Bare/Tinned Copper     Stranded                     2 – 30      Signal + control (e.g., motor encoders)

Product Uses
Automotive, ECU to sensor, CAN bus, infotainment

Industrial Automation, PLCs to sensors/actuators, HMI interfaces, encoder feedback lines

Aerospace/Avionics Flight computers, cockpit controls, acionics sensors

Medical Equipment, Patient monitoring, diagnostic devices, imaging systems

Home Appliances, data buses, control panels, etc

Renewable Energy, Data kubes frin sikar ubverters, sensors

Product Operate Guide
Apply cable base on its insulation property

Avoid bends

Always de-energize the system before working on cables

Proper PPE duing operation

Consideration
Feature                                                                                                                                    Why It Matters
Shielded Twisted Pair (STP/FTP)                        Minimizes noise and electromagnetic interference (EMI), essential for data lines
Low Capacitance Insulation                                  Maintains signal integrity over longer distances (especially analog/digital signals)
Color-Coded or Numbered Wires                        Simplifies troubleshooting and prevents wiring errors
Compact & Lightweight                                          Important for space-constrained or weight-sensitive applications (like avionics)
Custom Connector Options                                   Ensures compatibility with signal interfaces (D-Sub, Molex, RJ45, etc.)
Flexible Jacket Materials                                       PVC, PUR, or Teflon help withstand repeated bending in dynamic environment
