描述

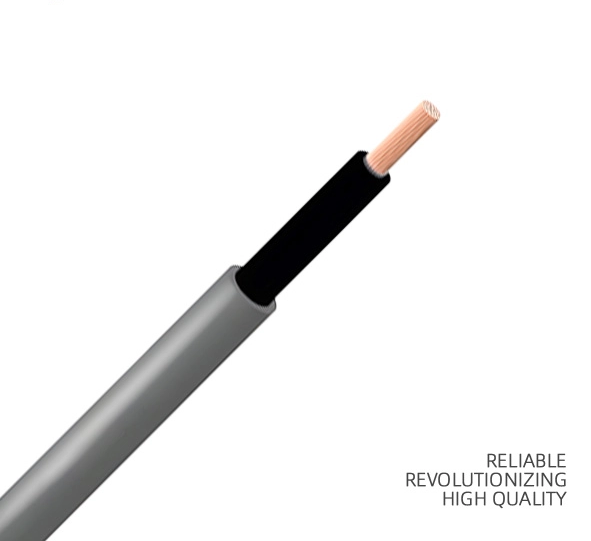

DC Charging Pile Cables by RRH are specialized for direct current (DC) fast chargers, delivering high-voltage, high-current power (up to 1000V, 500A) to rapidly charge electric vehicle batteries. Unlike AC cables, these DC cables bypass the vehicle’s on-board charger, transferring power directly to the battery for faster charging (0-80% in 15-30 minutes). Constructed with ultra-low-resistance copper conductors and advanced insulation (cross-linked polyethylene) that dissipates heat efficiently, they handle the thermal stress of rapid charging. RRH designs these cables to be flexible despite their heavy gauge, with ergonomic connectors (CCS Combo 2, CHAdeMO) that lock securely into chargers and vehicles. Weather-resistant (IP67 rated) and flame-retardant, they suit outdoor and indoor installations, from highway fast-charging stations to urban EV hubs. Whether powering a Tesla Supercharger or a public DC fast charger, these cables ensure rapid, safe charging, reducing wait times for EV drivers.

Product Advantage

Improved Durability with top quality manufactured insulation ensuring full compliance with industry standards, designed to withstand extreme temperatures, moisture and physical harms

RRH Cable we have the capability to manufacture grade A 99.9% pure copper precisely stranded in the insulators for the best conductivity and efficiency

Thanks to our expert craftsmanship, we provide high-quality cables that minimize the need for frequent maintenance or replacements, significantly reducing long-term operational costs.

Technical Parameters

Electrical Specifications

Rated Voltage  :600V / 1000V / up to 1500V DC (customizable)
Conductor Material :99.9% Pure Bare or Tinned Copper – Class 5 Stranded
Insulation Resistance :≥ 1 GΩ·km @ 20°C
Operating Temp. Range :-40°C to +90°C (Standard), up to +120°C (High Temp)
Minimum Bending Radius: 4 × Cable Outer Diameter
Insulation types :PE,PVC,XLPE,RUBBER,LSZH(customizable)

Full Cable Size Chart – mm² & AWG

Cross-Section (mm²)               AWG Equivalent              Approx. Diameter (mm)                   Ampacity (Air, 30°C)
0.5 mm²                                               20 AWG                                     ~2.1 mm                                          11 A
0.75 mm²                                             18 AWG                                      ~2.3 mm                                         15 A
1.0 mm²                                                17 AWG                                     ~2.5 mm                                          18 A
1.5 mm²                                                16 AWG                                     ~2.8 mm                                          24 A
2.5 mm²                                                14 AWG                                 ~3.5 – 4.2 mm                                   30 A
4 mm²                                                   12 AWG                                  ~4.2 – 5.0 mm                                  40 A
6 mm²                                                   10 AWG                                  ~5.0 – 5.8 mm                                  50 A
10 mm²                                                   8 AWG                                  ~6.5 – 7.2 mm                                  70 A
16 mm²                                                   6 AWG                                   ~7.5 – 8.5 mm                                100 A
25 mm²                                                  4 AWG                                 ~9.0 – 10.5 mm                                140 A
35 mm²                                                   2 AWG                                  ~10.5 – 12 mm                                170 A
50 mm²                                                   1 AWG                                 ~12.5 – 13.5 mm                              200 A
70 mm²                                              2/0 AWG                                    ~14.5 – 16 mm                              260 A
95 mm²                                              3/0 AWG                                        ~17 – 18 mm                              300 A
120 mm²                                           4/0 AWG                                        ~18 – 20 mm                              340 A
150 mm²                                           300 MCM                                      ~20 – 22 mm                               385 A
185 mm²                                           350 MCM                                       ~23 – 25 mm                               440 A
240 mm²                                          500 MCM                                       ~26 – 28 mm                               520 A
300 mm²                                          600 MCM                                                ~30 mm                               600 A

Product Uses

Power transmission to dc traction motors

Power supply for DC systems in navigation,lighting

EV wiring for charging station

DC based routers, servers

Solar power system connections

Product Operate Guide

Apply cable base on its insulation property

Avoid bends

Always de-energize the system before working on cables

Proper PPE duing operation

FAQ

Q: What are the payment terms?

For bulk orders we offer varieties of payment methods,L/C(Letter of Credit)or Advance Payment for first time partnerships.CAD(Cash AgainstDocument)trusted business partners also we offer WU(Western Union or Third Party Foreign Exchange Organizations)as an option.

Q: What services can you offer with the product?

Our team of specialists provides comprehensive follow-ups from start tofinish,based on the terms and duration of the contract and payment status.We offer regular photo and video updates to showcase progress,as wellaslive chat support to ensure clear communication between both parties.Ourservice continues through the shipping and delivery process,and we followup until the goods successfully pass the quality check phase.

Q: What is the warranty time with the product?

Our electric cables come with a standard warranty of between 5-20 yearsdepends on the model and working environment,which covers anymanufacturing defects under normal operating conditions.For specialized orlarge-volume orders,we can also offer extended warranty optionsdepending on the cable type and application.We stand by the quality of ourproducts and committed to supporting our clients throughout theproduct's life-cycle.
