描述

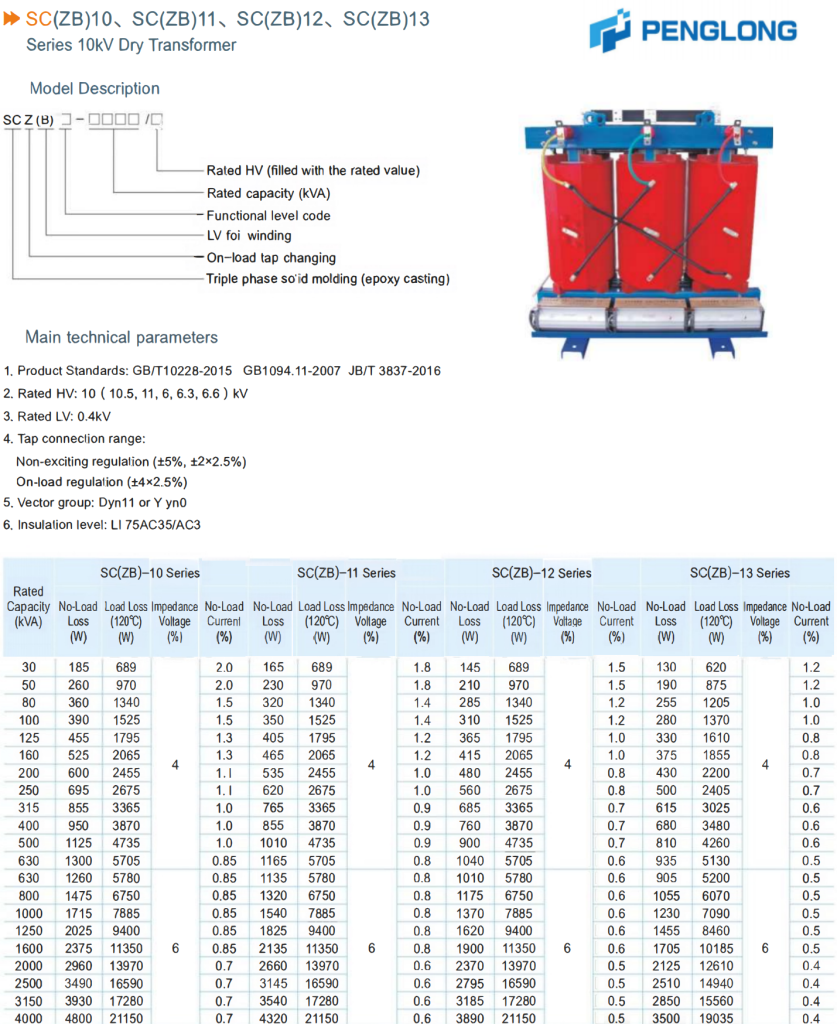

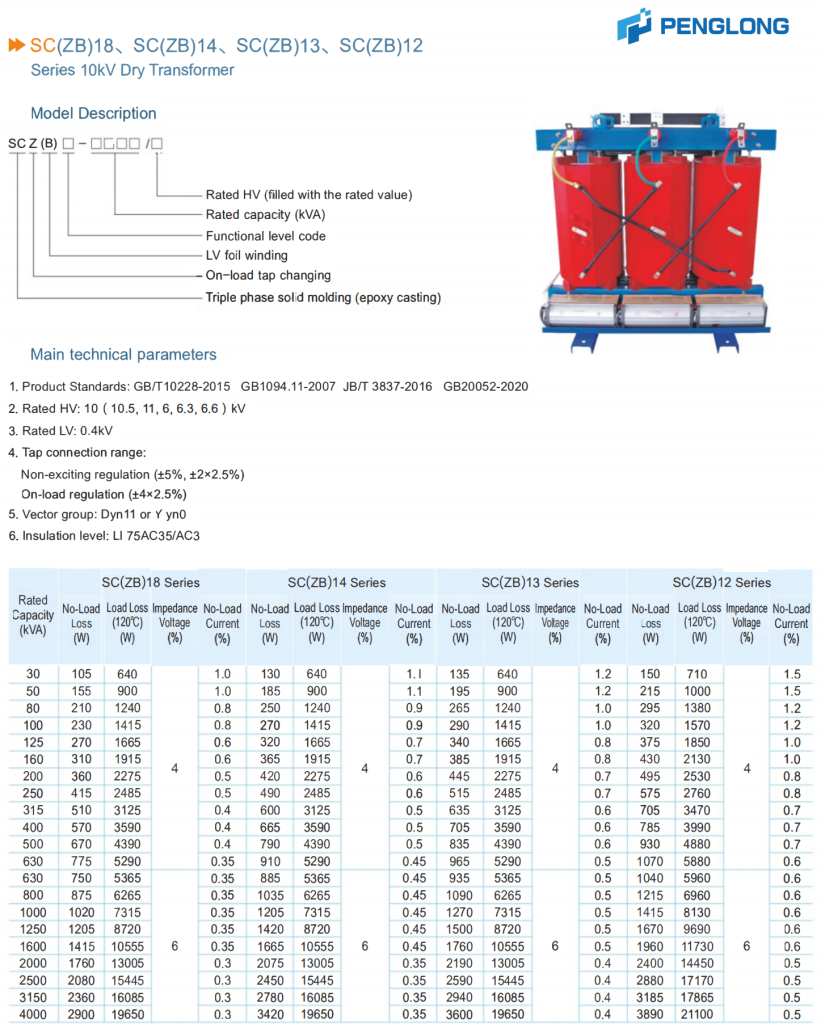

1. 10kV Epoxy Resin Cast Dry-Type Transformer( 10/11/12/13/14/18 Series)

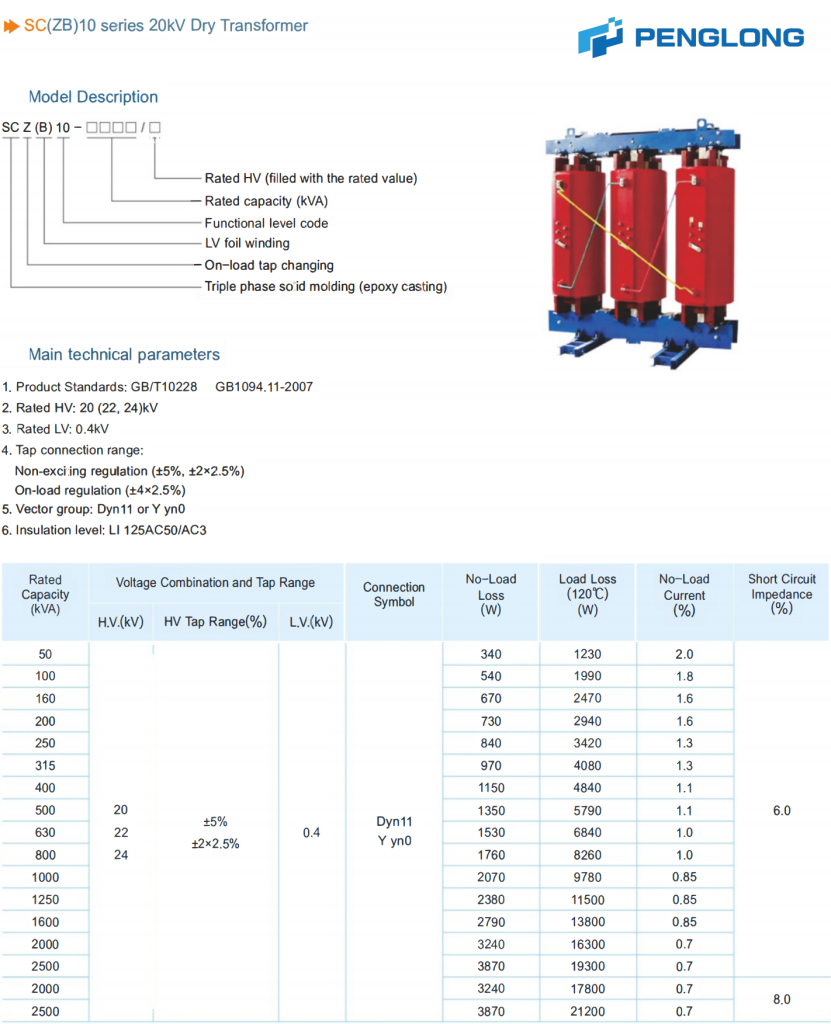

2. 12 Series 20kV Epoxy Resin Cast Dry-type Transformer
3. 12 Series 35kV Epoxy Resin Cast Dry-type Transformer

Main technical parameters

1. Product Standards: GB/T10228-2015 GB1094.11-2007 JB/T 3837-20162. Rated HV: 10 (10.5, 11, 6,6.3,6.6) kV
3. Rated LV: 0.4kV
4. Tap connection range:
Non-exciting regulation (+5%, +2x2.5%)On-load regulation (+4x2.5%)
5. Vector group: Dyn11 or Y yn0
6. Insulation level: LI 75AC35/AC3
